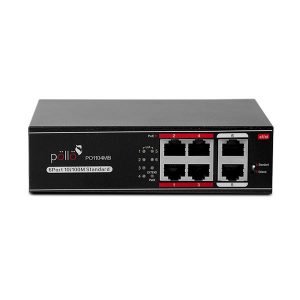

Pollo PO1104MB 10/100 Mbps 6-Port PoE Network Switch


• 4 Port FE PoE
• 2 FE Uplinks
• Long Transmission Distance 250m
• IEEE.802.3(af/at)
• Fanless, Mini-size
• Power Capacity 60W

Availability: Out of stock


Pollo PO1104MB 10/100 Mbps 6-Port PoE Network Switch is high speed innovative network switch available at nexgenshop in networking accessories collection. It can be used with any type of network. For routing , communicating and connecting devices in smart way. It has amazing features of Power over ethernet port. it means you can power your devices with networking cable.

This Pollo PO1104MB 10/100 Mbps 6-Port PoE Network Switch has latest version of IEEE 802. AF standard compliant. 4 x 10/100/1000 M auto negotiation and Auto MDIX fast ethernet 2 x RJ 45 ports. It has built in 4 PoE port iwth AF/AT intelligent recognition. which has capacity of 15.4 watt power for each Port. With 2 GIGABIT fiber SFP slots.

It is best choice network switch for a variety networking requirements. Shop this network switch from Nexegnshop at very competitive price.


Product Name Fast Ethernet 6-Port Long Transmission Distance PoE Switch
Product Model PO1104MB
Connector 6x 10/100M copper RJ45 Ports (All ports support MDI/MDIX auto sensing) Port 1-4: PoE port, max PoE power output is 30W. Transmission Distance: 250 Meters @10M, 100 Meters @ 100M
Transfer Mode Store-And-Forward
Network Medium 10BASE-T: Cat3,4,5,6 UTP (≤100 meters); 100BASE-TX: Cat5 or later UTP (≤100 meters);
Performance Specification Bandwidth: 1.6G Network L a t e n c y ( 100 t o 1 0 0 Mbps): maximum d e l a y l e s s t h a n 2 0 microseconds Buffer Memory:1M MAC Size: 2K MTBF: 100,000hours
Network Protocols and Standards IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.3af/at
Switch Mode Definition Mode 1: Port 1-6: 10/100 autosensing. @100meters. Mode 2: Port 1-4: 10M @ 250 meters Port 5-6: 100M @ 100 meters
LEDs Status PWR L/A
Power Total Power: 60W Input: AC100-240V, 50-60Hz PoE Power Supply: 1,2(+)/3,6(-) (Default) ; 45(+),78(-) (Option)
Dimension 142 * 113 * 40mm
Working Environment Operating Temperature: -20 ° ~ 55 ° C; Storage Temperature: -20 ° ~ 75 ° C; Humidity: 10% ~ 90%, non condensing Storage Humidity: 10% ~ 95%, non-condensing; Working Altitude: 3000 m (10,000 ft); Storage Altitude: 3,000 m (10,000 ft)
Radiation CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B
Safety CE Mark ,commercial CE/LVD EN60950
Warranty 1 year warranty
