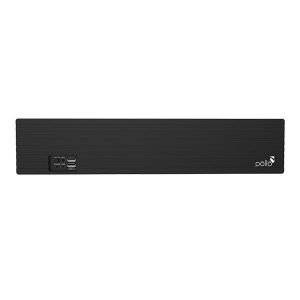

Pollo PLC-1532H8/PR 5 MP 32CH HD Digital Video Recorder(DVR)

38500.00

• 32 Channel Input
• 5 MP Resolution
• AHD/TVI/CVI/IP
• H.265+/H.264
• Output: HDMI, VGA & CVBS
• 8 SATA upto 64TB

Availability: Out of stock

Description

Pollo PLC-1532H8/PR 5 MP 32CH HD Digital Video Recorder(DVR) is a High definition video recorder. It comes with 32 channels for high definition recording. It fulfills all your need for digital video recording as many channels as you want. With its 32 channels inputs you can have and every prospective recorded with high definition. It has 8 SATA hard disk interfaces that can store up to 64 TB data.

This Pollo PLC-1532H8/PR 5 MP 32CH HD Digital Video Recorder(DVRcomes with PLC-1532H8 PR-E processor. That enable this DVR to work very efficiently with 32 channels. it gives you seamless processing speed. It has many latest features for video recording for example it can record videos via Email, when a push notification or motion is detected and with screen tips. You can also record video with various quality modes. Its all technical specs are listed below in a table. Shop this digital video recorder from Nexgenshop at lowest prices.

Specifications

Main ProcessorPLC-1532H8 PR-E
InputNormal Mode: Analog: 32 * (AHD/TVI/CVI: 8MP; TVI/AHD: 5 MP; AHD/TVI/CVI: 4 MP; AHD/TVI: 3 MP; AHD/TVI/CVI: 1080p/720p
Input32 Channel BNC
Signal TypeCVBS/AHD/CVI/TVI/Network
Output1 HD, 1 VGA
Incoming Bandwidth160Mbps
Input2 Channel, RCA
Motion Detection32 Channel (Max. 32 Channel in Pure Network Mode)
Trigger EventsRecording, Email, Screen tips, Buzzer, Push Notifications (Motion Detection)
Email AlarmSend Image to Designated E-mail
InterfaceRS485
ProtocolPelco – D, Pelco – P
Baud Rate110 – 921600
Address0 – 255
VGAResolution: 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz
HD OutputResolution:(2592 × 1944) /30 Hz, 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz
Display Split36 Channel/25 Channel/16 Channel/9 Channel/8 Channel/4 Channel /1Channel
Privacy Masking3 Rectangular Zones (Each Camera)
OSDCamera Title, Time, Video Loss, Alarm, Motion detection, Recording
Video CompressionH.265/H.265+/H.264/H.264+
Audio CompressionG711u
Resolution5 MP (2592 × 1944), 8 MP_LITE (1920 × 2160) ,5 MP_HALF (1296 × 1944), 4 MP (2560 × 1440), 4 MP_HALF (1280 × 1440), 3 MP (2048 × 1536), 1080p (1920 × 1080), 720p (1280 × 720), 960H (P: 960 × 576/N: 960 × 480)
Video QualityWorst/Worse/Ordinary/Well/Best
Record RateNormal Mode: Analog: PAL: 8 MP_LITE (1920 × 2160, 16 * 8 fps), 5 MP (2592 × 1944, 16 * 6 fps), 5 MP_LITE (1296 × 1944, 16 * 10 fps), 4 MP (2560 × 1440, 16 * 8 fps), 4 MP_LITE (1280 × 1440, 16 * 15 fps), 3 MP (2048 × 1536, 16 * 9 fps), 1080p (1920 x 1080, 16 * 15 fps), 720p (1280 × 720, 16 * 25 fps), 960H (960 × 576, 16 * 25 fps) NTSC: 8 MP_LITE (1920 × 2160, 16 * 8 fps), 5 MP (2592 × 1944, 16 * 6 fps), 5 MP_LITE (1296 × 1944, 16 * 10 fps), 4 MP (2560 × 1440, 16 * 8 fps), 4 MP_LITE (1280 × 1440, 16 * 15 fps), 3 MP (2048 × 1536, 16 * 9 fps), 1080p (1920 x 1080, 16 * 15 fps), 720p (1280 × 720, 16 * 30 fps), 960H (960 × 480, 16 * 30 fps) Lite Mode: Analog: Half 1080p (960 x 1080, 16 * 25 fps), 720p (1280 × 720, 16 * 25 fps), 960H (P: 960 × 576, 16 * 25 fps/N: 960 × 480, 16 * 30 fps) Pure IP (H.265): AL: 4K @ 17 × 25 fps, 5 MP @ 26 × 25 fps, 4 MP @ 32 x 25 fps, 3 MP @ 32 × 25 fps, 1080p @ 32 × 25 fps, 960p @ 32 × 25 fps, 720p @ 32 × 25 fps, D1 @ 32 × 25 fps NTSC: 4K @ 17 × 30 fps, 5 MP @ 26 × 30 fps, 4 MP @ 32 × 30 fps, 3 MP @ 32 × 30 fps, 1080p @ 32 × 30 fps, 960p @ 32 × 30 fps, 720p @ 32 × 30 fps, D1 @ 32 × 30 fps
Record ModeManual/Timer/Motion Detection
Decode Capability9 Channel 1080p @ 30 fps
Sync PlaybackPure Analog: 32 Channel 1080N @ 15 fps, 16 Channel 5 MP @ 6 fps,16 Channel 5 MP_LITE @ 10 fps, 16 Channel 4 MP @ 8 fps, 16 Channel 4 MP_LITE @ 15 fps, 16 Channel 3 MP @ 9 fps, 16 Channel 1080p @ 15 fps, 16 Channel 1080N @ 25 fps Mix Mode: 1 Channel 4K @ 30 fps, 2 Channel 5MP @ 30 fps, 2 Channel 4 MP @ 30 fps, 3 Channel 3 MP @ 30 fps, 4 Channel 1080p @ 30 fps, 4 Channel 960p @ 30 fps, 4 Channel 720p @ 30 fps Pure IPC: 2 Channel 4K @ 30 fps, 4 Channel 5 MP @ 30 fps, 4 Channel 4 MP @ 30 fps, 5 Channel 3 MP @ 30 fps, 9 Channel 1080p @ 30 fps, 9 Channel 960p @ 30 fps, 9 Channel 720p @ 30 fps
Remote Playback4 Channel/1 Channel
Search ModeAll, Channel, Manual, Time, Date, Motion Detection
Playback FunctionsPlay, Pause, Stop, Fast Play, Rewind, Digital Zoom, Full screen
Smart Phone Playback4 Channel
Backup ModeUSB Device (Format FAT 32)/Network/FTP
Interface1 RJ45 10M/100/1000M Adaptive Ethernet Interface
Network FunctionsTCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP, P2P
DDNSDynDNS, Change-IP, No-IP, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE
Web BrowserIE8-11, Google Chrome (Lower Than Ver44), Firefox (Lower Than Ver53)
CMS SoftwareSupports Windows 7/ Windows 8/Windows 10
Extra StreamCIF (1 – 30 fps)
Smart PhoneiPhone, iPad, Android, Android Pad
Interface Type8 SATA Interface
Storage Capacity8 SATA Hard Disk (2.5″/3.5″ SATA, Up to 64TB)
LanguageChinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farsi German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek
UTC ControlYes
USB Interface2 USB 2.0 Interfaces
Power consumptionDC 12 V ≤10W (Without Hard Disk)
Working Environment-10 ℃ – 55 ℃/10 – 90%
Weight9.8kg
Dimension (W × D × H)260 * 215 * 43 (mm)
