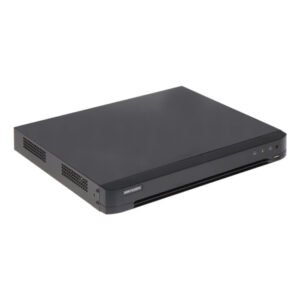

Hikvision iDS-7216HQHI-M1/S Digital video recorder


  • Up to 24 network cameras can be connected
  • 16 channels and 1 HDD 1U AcuSense DVR
  • Efficient H.265 pro+ compression technology
Availability: Out of stock


The Hikvision iDS-7216HQHI-M1/S Digital video recorder is a hybrid network NVR with 16 channels.

Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution 4MP
Video Bitrate 32 Kbps to 6 Mbps
Dual-Stream Support
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
IP Video Input 8-ch (up to 24-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input 16-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coalition connection
HDMI Output Yes
Remote Connection 128
Power Supply 12 VDC
Consumption ≤ 24 W
Working Temperature -10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity ≤ 24 W
Dimension (W × D × H)

315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)

≤ 2 kg (4.4 lb)

Main description

Each image in digital video is composed of pixels, each of which has a specific color value and light value. At first, the bandwidth needed to be increased to send high-quality video. The solution to the bandwidth issue was interlacing, which later evolved into one of the first compression methods and is still widely used in linear broadcast SD and HD TV today. However, interlacing has been completely abandoned in favor of a progressive picture in UHDTV standards.

The H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 is the codec primarily used in video compression standards. The Hikvision iDS-7216HQHI-M1/S Digital video recorder comes with a 12 VDC power supply and a Working Temperature of -10 °C to +55 °C. If the temperature remains within this range, then you can place DVR anywhere. The DVR has a 64 Kbps Audio Bitrate. The amount of data stored in the sound file you are listening to. This is the best hikvision dvr 16 channel, which can be used for security cameras.
